Quanta QSSC S99¶

Firmware Upgrade to 1.04¶

How to upgrade the firmware on a Quanta QSSC-S99 with the FreeDOS boot.

Ensure you have inserted a USB device into the server. The USB device should contain the image that has been created for the firmware upgrades.

Enter BIOS setup by hitting F2

../_images/quanta_fw_104_udpdate_01.png

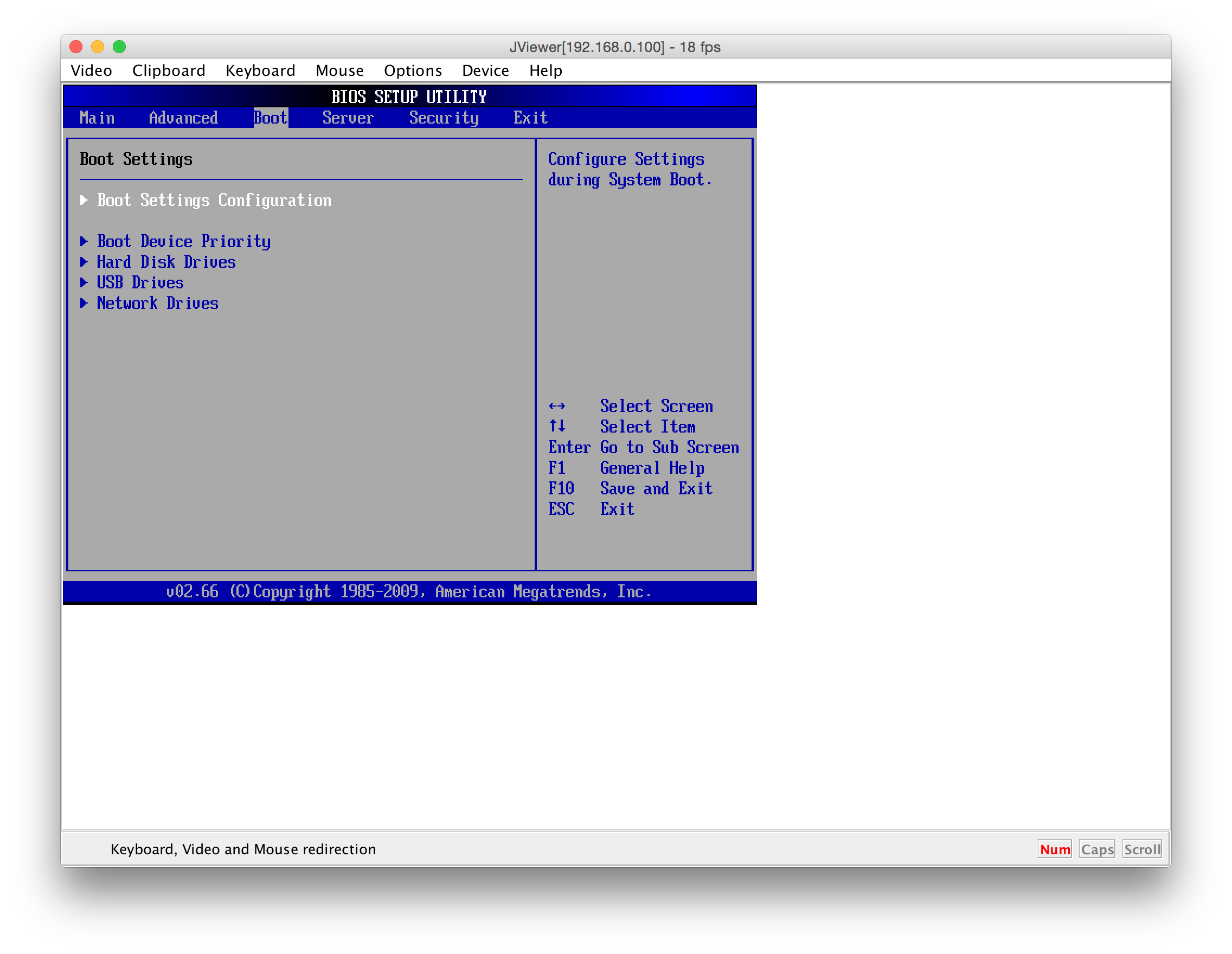

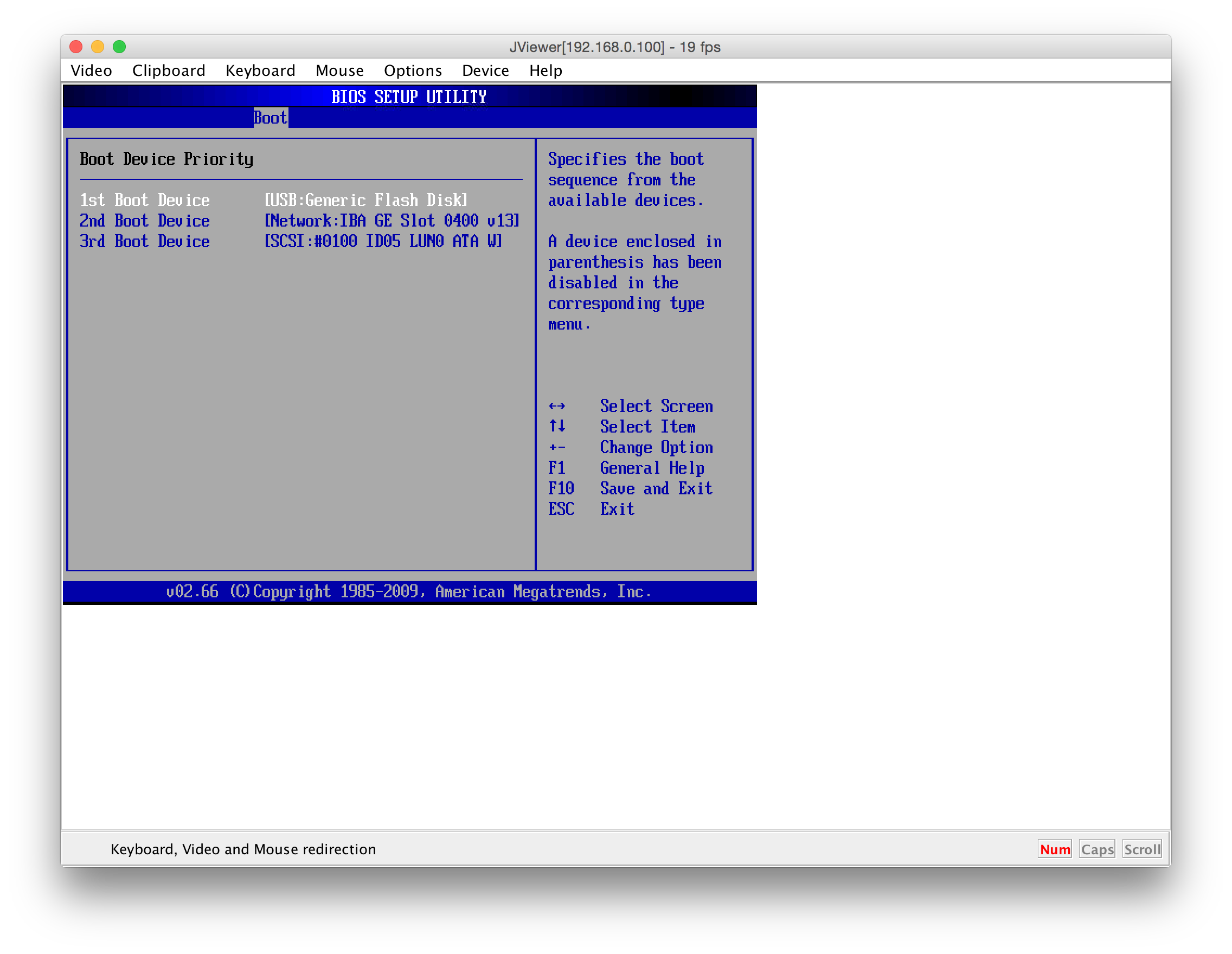

Ensure your first boot device is the USB flash drive.

../_images/quanta_fw_104_udpdate_02.png

../_images/quanta_fw_104_udpdate_03.png

Hit F10 to save and exit.

../_images/quanta_fw_104_udpdate_04.png

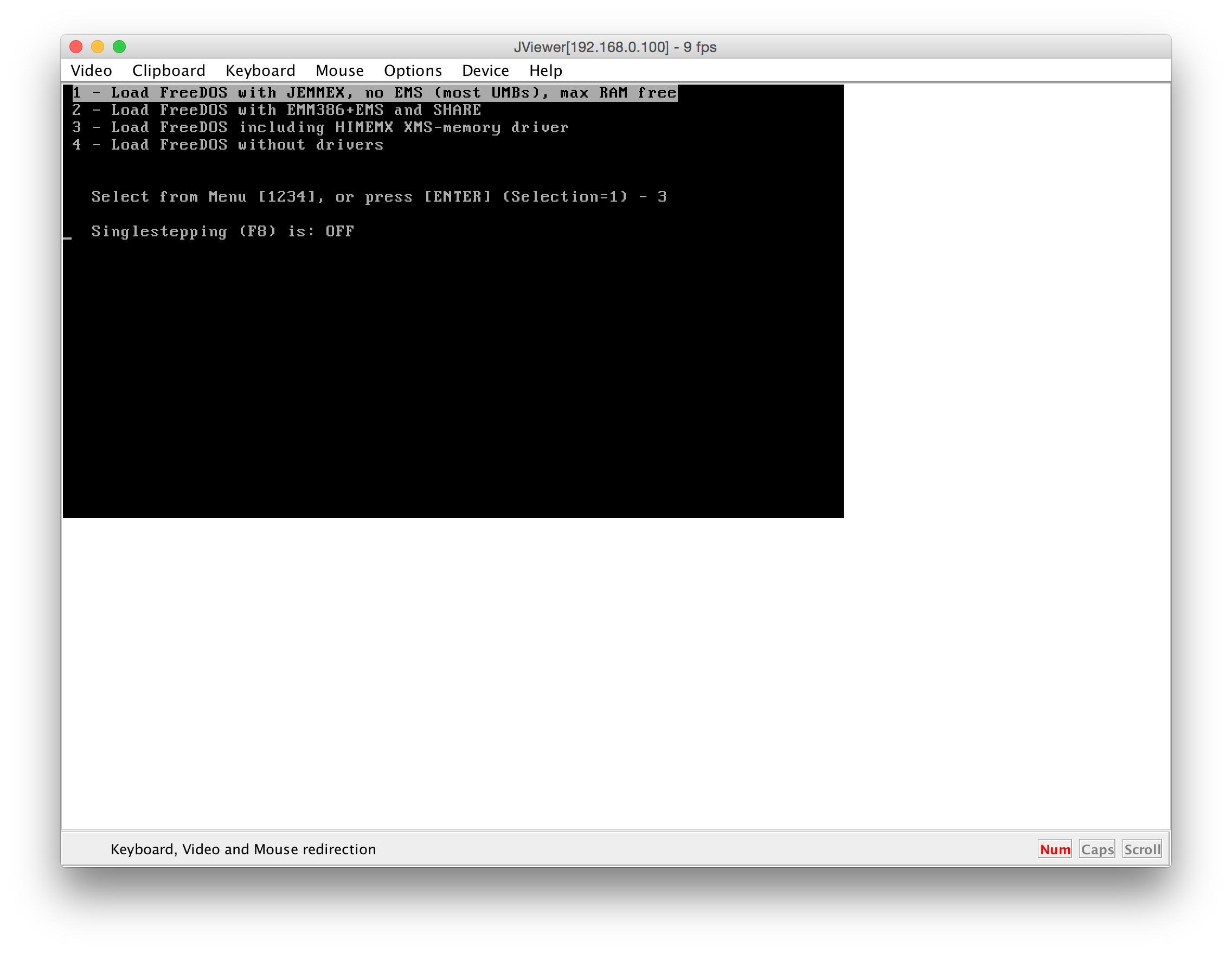

Select the first boot option for FreeDOS when the boot loader appears.

../_images/quanta_fw_104_udpdate_05.png

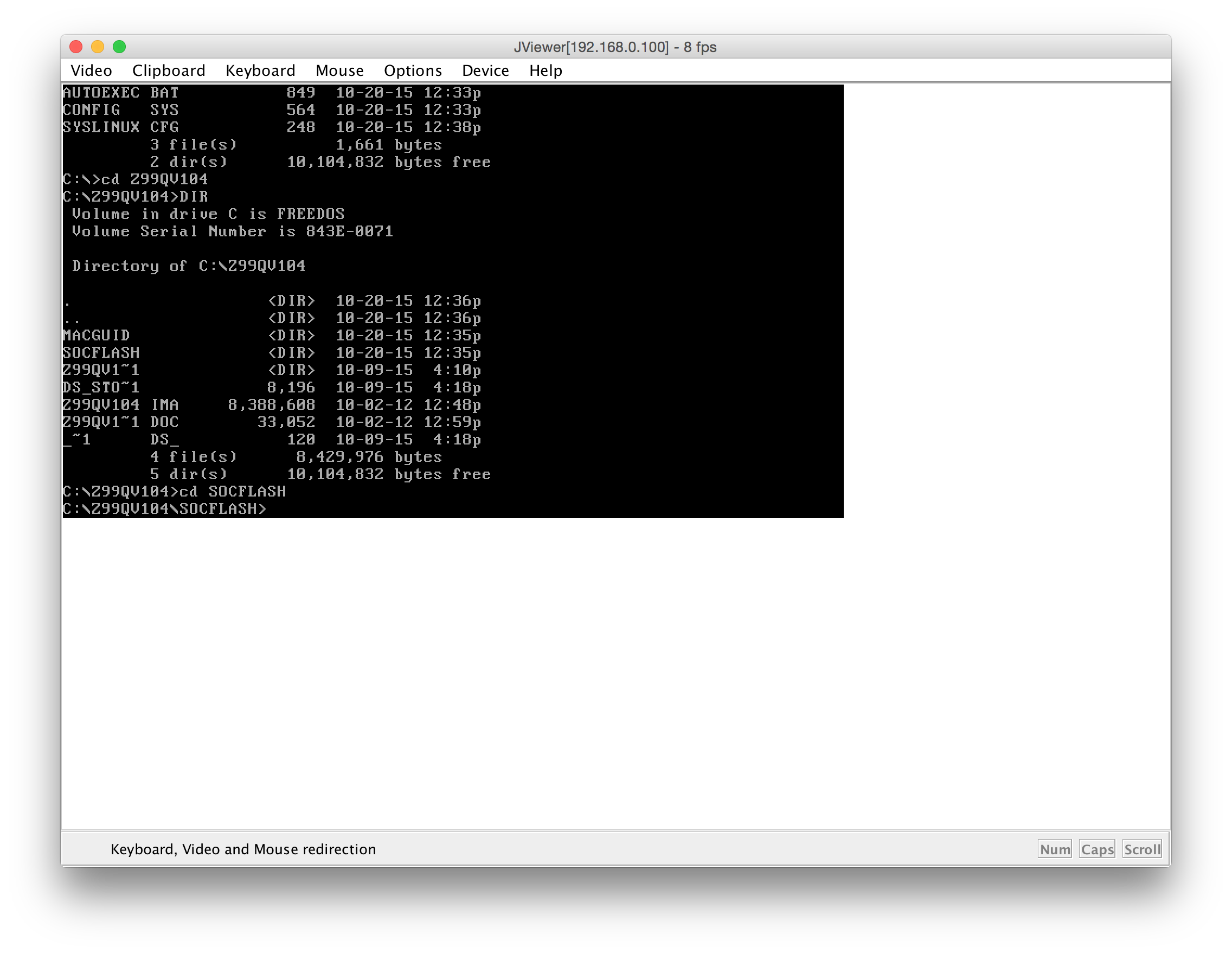

Navigate to the directory containing the firmware which is under c:\Z99QV104\SOCFLASH.

../_images/quanta_fw_104_udpdate_07.png

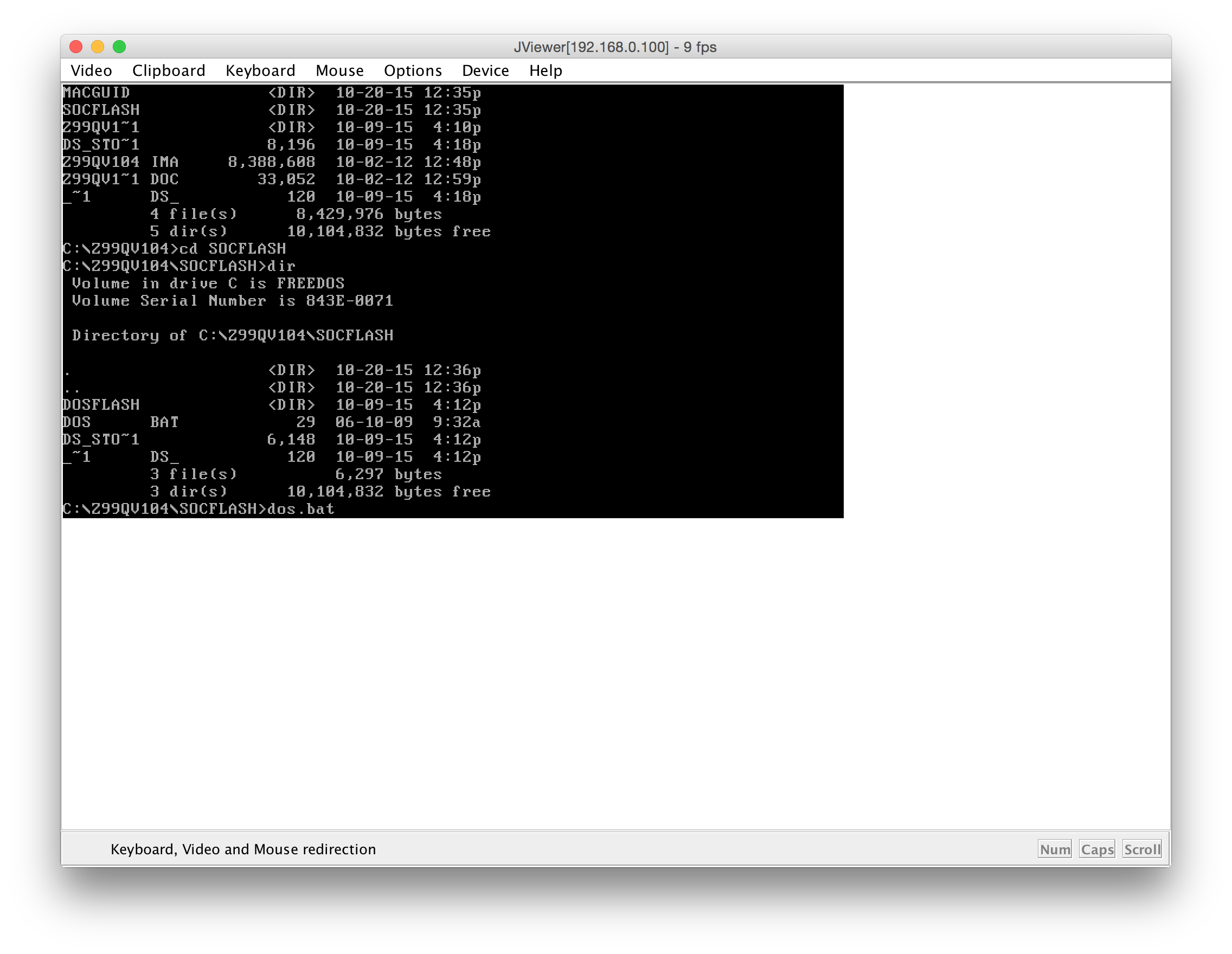

Once in that directory execute the BAT file dos.bat which will begin the firmware flash.

../_images/quanta_fw_104_udpdate_08.png

The BAT job will complete and take you back to the command prompt. You can now power off the system and remove all power cords.

../_images/quanta_fw_104_udpdate_10.png
