Fujitsu CD10000¶
Login Info¶
- Web URL :
https://129.10.3.253/dashboard(note - web server no longer responding on this address) - User/Password : bitwarden Kaizen Fujitsu CD10000 User
- SSH User/Password : bitwarden Kaizen Fujitsu CD10000 SSH User
IPMI¶
- IPMI of the management server : 10.99.1.14 (accessible via HIL master or emergency box)
- current user/password: bitwarden Kaizen Fujitsu CD10000 Management
- IPMI of the individual nodes: 192.168.10.11-14 which (accessible from the management server, brocade 1g switches vlan 10 in fujitsu appliance cage)
- current user/password is still set at the default, see bitwarden Kaizen Fujitsu CD10000 Nodes
- those should be accessible from haas-master after 7/13 visit
Documentation¶

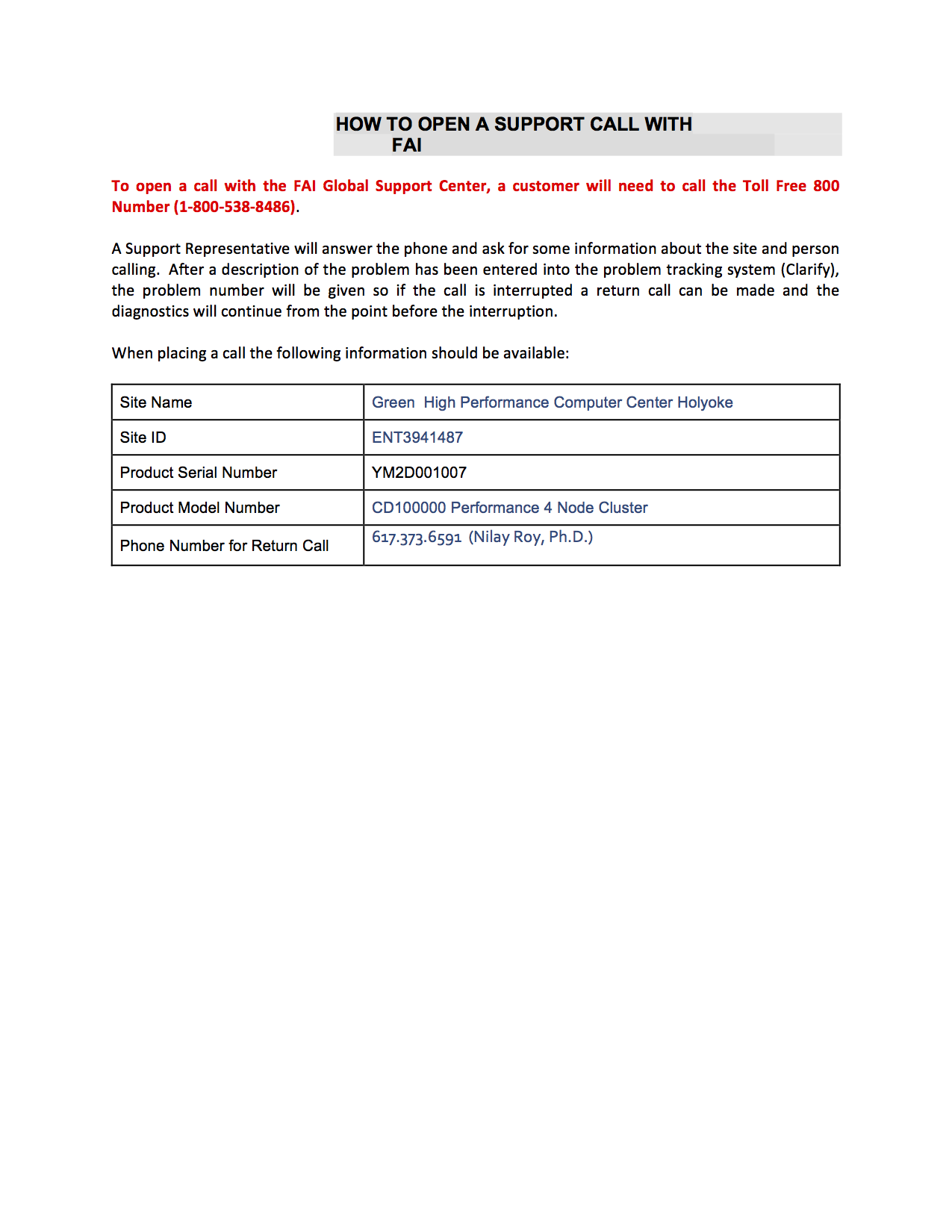

How to open a support call to Fujitsu¶
Via Phone (all high priority issues)
Via Web (low priority issues only)
- Link
- The first prompt will ask for serial number. YM2D001007 is the serial number for your CD10000. This information can be displayed with the following command when executed on the CD10000 management node:
[root@pmgmt ~]# cd10000 ip cluster show
+------------+--------------------+--------------------+-----------------+-----------------+-----------------+
| Cluster SN | Management node SN | Administration net | IRMC net | Cluster net | Switch net |
+------------+--------------------+--------------------+-----------------+-----------------+-----------------+
| YM2D001007 | YM2H001033 | 192.168.20.0/23 | 192.168.10.0/23 | 192.168.40.0/23 | 192.168.50.0/23 |
+------------+--------------------+--------------------+-----------------+-----------------+-----------------+
Networking¶
There are three networks on CD10000’s switch. The storage nodes are on all three networks; anything else on those networks is explicitly noted.
- 192.168.20.0/24
- 2 bonded 1G ethernet
- Connects to CD10000 management node
- 192.168.28.0/24
- 2 bonded 10G ethernet
- Connects to main switch; user data plane
- 192.168.40.0/24
- 2 bonded infiniband
- internal Ceph data transfer
- 192.168.50.11
- brocade 1G stack of 2 switches
telnet@br001>sh vlan
Total PORT-VLAN entries: 3
Maximum PORT-VLAN entries: 64
Legend: [Stk=Stack-Id, S=Slot]
PORT-VLAN 1, Name DEFAULT-VLAN, Priority level0, Spanning tree On
Untagged Ports: (U1/M3) 3 4 5 6 7 8
Untagged Ports: (U2/M3) 3 4 5 6 7 8
Tagged Ports: None
Uplink Ports: None
DualMode Ports: (U1/M1) 1 2
DualMode Ports: (U1/M3) 1 2
DualMode Ports: (U2/M1) 1 2
DualMode Ports: (U2/M3) 1 2
Mac-Vlan Ports: None
Monitoring: Disabled
PORT-VLAN 10, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U1/M1) 7 8 9 10 11 12 13 14 15 16 17 18
Untagged Ports: (U1/M1) 19 20
Untagged Ports: (U2/M1) 7 8 9 10 11 12 13 14 15 16 17 18
Untagged Ports: (U2/M1) 19 20
Tagged Ports: (U1/M1) 1 2
Tagged Ports: (U1/M3) 1 2
Tagged Ports: (U2/M1) 1 2
Tagged Ports: (U2/M3) 1 2
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: None
Monitoring: Disabled
PORT-VLAN 20, Name [None], Priority level0, Spanning tree On
Untagged Ports: (U1/M1) 3 4 5 6 21 22 23 24 25 26 27 28
Untagged Ports: (U1/M1) 29 30 31 32 33 34 35 36 37 38 39 40
Untagged Ports: (U1/M1) 41 42 43 44 45 46 47 48
Untagged Ports: (U2/M1) 3 4 5 6 21 22 23 24 25 26 27 28
Untagged Ports: (U2/M1) 29 30 31 32 33 34 35 36 37 38 39 40
Untagged Ports: (U2/M1) 41 42 43 44 45 46 47 48
Tagged Ports: (U1/M1) 1 2
Tagged Ports: (U1/M3) 1 2
Tagged Ports: (U2/M1) 1 2
Tagged Ports: (U2/M3) 1 2
Uplink Ports: None
DualMode Ports: None
Mac-Vlan Ports: None
Monitoring: Disabled
telnet@br001>sh ru
Current configuration:
!
ver 08.0.10dT7f1
!
stack unit 1
module 1 icx6610-48-port-management-module
module 2 icx6610-qsfp-10-port-160g-module
module 3 icx6610-8-port-10g-dual-mode-module
priority 10
stack-trunk 1/2/1 to 1/2/2
stack-trunk 1/2/6 to 1/2/7
stack-port 1/2/1 1/2/6
stack unit 2
module 1 icx6610-48-port-management-module
module 2 icx6610-qsfp-10-port-160g-module
module 3 icx6610-8-port-10g-dual-mode-module
stack-trunk 2/2/1 to 2/2/2
stack-trunk 2/2/6 to 2/2/7
stack-port 2/2/1 2/2/6
stack enable
stack mac cc4e.24bc.ede0
!
!
!
lag "mngmnt1" dynamic id 1
ports ethernet 1/1/1 ethernet 2/1/1
primary-port 1/1/1
force-up ethernet 1/1/1
deploy
!
lag "mngmnt2" dynamic id 2
ports ethernet 1/1/2 ethernet 2/1/2
primary-port 1/1/2
force-up ethernet 1/1/2
deploy
!
lag "trunk1" dynamic id 3
ports ethernet 1/1/21 ethernet 2/1/21
primary-port 1/1/21
force-up ethernet 1/1/21
deploy
!
lag "trunk10" dynamic id 12
ports ethernet 1/1/30 ethernet 2/1/30
primary-port 1/1/30
force-up ethernet 1/1/30
deploy
!
lag "trunk11" dynamic id 13
ports ethernet 1/1/31 ethernet 2/1/31
primary-port 1/1/31
force-up ethernet 1/1/31
deploy
!
lag "trunk12" dynamic id 14
ports ethernet 1/1/32 ethernet 2/1/32
primary-port 1/1/32
force-up ethernet 1/1/32
deploy
!
lag "trunk13" dynamic id 15
ports ethernet 1/1/33 ethernet 2/1/33
primary-port 1/1/33
force-up ethernet 1/1/33
deploy
!
lag "trunk14" dynamic id 16
ports ethernet 1/1/34 ethernet 2/1/34
primary-port 1/1/34
force-up ethernet 1/1/34
deploy
!
lag "trunk15" dynamic id 17
ports ethernet 1/1/35 ethernet 2/1/35
primary-port 1/1/35
force-up ethernet 1/1/35
deploy
!
lag "trunk16" dynamic id 18
ports ethernet 1/1/36 ethernet 2/1/36
primary-port 1/1/36
force-up ethernet 1/1/36
deploy
!
lag "trunk17" dynamic id 19
ports ethernet 1/1/37 ethernet 2/1/37
primary-port 1/1/37
force-up ethernet 1/1/37
deploy
!
lag "trunk18" dynamic id 20
ports ethernet 1/1/38 ethernet 2/1/38
primary-port 1/1/38
force-up ethernet 1/1/38
deploy
!
lag "trunk19" dynamic id 21
ports ethernet 1/1/39 ethernet 2/1/39
primary-port 1/1/39
force-up ethernet 1/1/39
deploy
!
lag "trunk2" dynamic id 4
ports ethernet 1/1/22 ethernet 2/1/22
primary-port 1/1/22
force-up ethernet 1/1/22
deploy
!
lag "trunk20" dynamic id 22
ports ethernet 1/1/40 ethernet 2/1/40
primary-port 1/1/40
force-up ethernet 1/1/40
deploy
!
lag "trunk21" dynamic id 23
ports ethernet 1/1/41 ethernet 2/1/41
primary-port 1/1/41
force-up ethernet 1/1/41
deploy
!
lag "trunk22" dynamic id 24
ports ethernet 1/1/42 ethernet 2/1/42
primary-port 1/1/42
force-up ethernet 1/1/42
deploy
!
lag "trunk23" dynamic id 25
ports ethernet 1/1/43 ethernet 2/1/43
primary-port 1/1/43
force-up ethernet 1/1/43
deploy
!
lag "trunk24" dynamic id 26
ports ethernet 1/1/44 ethernet 2/1/44
primary-port 1/1/44
force-up ethernet 1/1/44
deploy
!
lag "trunk25" dynamic id 27
ports ethernet 1/1/45 ethernet 2/1/45
primary-port 1/1/45
force-up ethernet 1/1/45
deploy
!
lag "trunk26" dynamic id 28
ports ethernet 1/1/46 ethernet 2/1/46
primary-port 1/1/46
force-up ethernet 1/1/46
deploy
!
lag "trunk27" dynamic id 29
ports ethernet 1/1/47 ethernet 2/1/47
primary-port 1/1/47
force-up ethernet 1/1/47
deploy
!
lag "trunk28" dynamic id 30
ports ethernet 1/1/48 ethernet 2/1/48
primary-port 1/1/48
force-up ethernet 1/1/48
deploy
!
lag "trunk3" dynamic id 5
ports ethernet 1/1/23 ethernet 2/1/23
primary-port 1/1/23
force-up ethernet 1/1/23
deploy
!
lag "trunk4" dynamic id 6
ports ethernet 1/1/24 ethernet 2/1/24
primary-port 1/1/24
force-up ethernet 1/1/24
deploy
!
lag "trunk5" dynamic id 7
ports ethernet 1/1/25 ethernet 2/1/25
primary-port 1/1/25
force-up ethernet 1/1/25
deploy
!
lag "trunk6" dynamic id 8
ports ethernet 1/1/26 ethernet 2/1/26
primary-port 1/1/26
force-up ethernet 1/1/26
deploy
!
lag "trunk7" dynamic id 9
ports ethernet 1/1/27 ethernet 2/1/27
primary-port 1/1/27
force-up ethernet 1/1/27
deploy
!
lag "trunk8" dynamic id 10
ports ethernet 1/1/28 ethernet 2/1/28
primary-port 1/1/28
force-up ethernet 1/1/28
deploy
!
lag "trunk9" dynamic id 11
ports ethernet 1/1/29 ethernet 2/1/29
primary-port 1/1/29
force-up ethernet 1/1/29
deploy
!
!
vlan 1 name DEFAULT-VLAN by port
!
vlan 10 by port
tagged ethe 1/1/1 to 1/1/2 ethe 1/3/1 to 1/3/2 ethe 2/1/1 to 2/1/2 ethe 2/3/1 to 2/3/2
untagged ethe 1/1/7 to 1/1/20 ethe 2/1/7 to 2/1/20
!
vlan 20 by port
tagged ethe 1/1/1 to 1/1/2 ethe 1/3/1 to 1/3/2 ethe 2/1/1 to 2/1/2 ethe 2/3/1 to 2/3/2
untagged ethe 1/1/3 to 1/1/6 ethe 1/1/21 to 1/1/48 ethe 2/1/3 to 2/1/6 ethe 2/1/21 to 2/1/48
!
!
!
!
enable super-user-password .....
hostname br001
ip address 192.168.50.11 255.255.254.0
no ip dhcp-client enable
!
telnet client 192.168.50.1
telnet server enable vlan 20
snmp-server community ..... ro
snmp-server enable vlan 20
snmp-server host 192.168.50.1 version v2c .....
!
!
!
!
ntp
disable serve
server 192.168.50.1 burst
!
!
snmp-client 192.168.50.1
web client 192.168.50.1
no web-management http
hitless-failover enable
interface ethernet 1/1/1
dual-mode
no spanning-tree
!
interface ethernet 1/1/2
dual-mode
no spanning-tree
!
interface ethernet 1/1/3
no spanning-tree
!
interface ethernet 1/1/4
no spanning-tree
!
interface ethernet 1/1/5
no spanning-tree
!
interface ethernet 1/1/6
no spanning-tree
!
interface ethernet 1/1/7
no spanning-tree
!
interface ethernet 1/1/8
no spanning-tree
!
interface ethernet 1/1/9
no spanning-tree
!
interface ethernet 1/1/10
no spanning-tree
!
interface ethernet 1/1/11
no spanning-tree
!
interface ethernet 1/1/12
no spanning-tree
!
interface ethernet 1/1/13
no spanning-tree
!
interface ethernet 1/1/14
no spanning-tree
!
interface ethernet 1/1/15
no spanning-tree
!
interface ethernet 1/1/16
no spanning-tree
!
interface ethernet 1/1/17
no spanning-tree
!
interface ethernet 1/1/18
no spanning-tree
!
interface ethernet 1/1/19
no spanning-tree
!
interface ethernet 1/1/20
no spanning-tree
!
interface ethernet 1/1/21
no spanning-tree
!
interface ethernet 1/1/22
no spanning-tree
!
interface ethernet 1/1/23
no spanning-tree
!
interface ethernet 1/1/24
no spanning-tree
!
interface ethernet 1/1/25
no spanning-tree
!
interface ethernet 1/1/26
no spanning-tree
!
interface ethernet 1/1/27
no spanning-tree
!
interface ethernet 1/1/28
no spanning-tree
!
interface ethernet 1/1/29
no spanning-tree
!
interface ethernet 1/1/30
no spanning-tree
!
interface ethernet 1/1/31
no spanning-tree
!
interface ethernet 1/1/32
no spanning-tree
!
interface ethernet 1/1/33
no spanning-tree
!
interface ethernet 1/1/34
no spanning-tree
!
interface ethernet 1/1/35
no spanning-tree
!
interface ethernet 1/1/36
no spanning-tree
!
interface ethernet 1/1/37
no spanning-tree
!
interface ethernet 1/1/38
no spanning-tree
!
interface ethernet 1/1/39
no spanning-tree
!
interface ethernet 1/1/40
no spanning-tree
!
interface ethernet 1/1/41
no spanning-tree
!
interface ethernet 1/1/42
no spanning-tree
!
interface ethernet 1/1/43
no spanning-tree
!
interface ethernet 1/1/44
no spanning-tree
!
interface ethernet 1/1/45
no spanning-tree
!
interface ethernet 1/1/46
no spanning-tree
!
interface ethernet 1/1/47
no spanning-tree
!
interface ethernet 1/1/48
no spanning-tree
!
interface ethernet 1/3/1
dual-mode
!
interface ethernet 1/3/2
dual-mode
!
interface ethernet 2/3/1
dual-mode
!
interface ethernet 2/3/2
dual-mode
!
!
!
!
!
!
ip ssh client 192.168.50.1
!
!
end
telnet@br001>sh ver
Copyright (c) 1996-2014 Brocade Communications Systems, Inc. All rights reserved.
UNIT 1: compiled on Jul 25 2014 at 12:28:26 labeled as FCXS08010d
(7267788 bytes) from Primary FCXS08010d.bin
SW: Version 08.0.10dT7f1
UNIT 2: compiled on Jul 25 2014 at 12:28:26 labeled as FCXS08010d
(7267788 bytes) from Primary FCXS08010d.bin
SW: Version 08.0.10dT7f1
Boot-Monitor Image size = 370695, Version:10.1.00T7f5 (grz10100)
HW: Stackable ICX6610-48
==========================================================================
UNIT 1: SL 1: ICX6610-48 48-port Management Module
Serial #: BXN3849K001
License: BASE_SOFT_PACKAGE (LID: dzpINJOmFFG)
P-ENGINE 0: type E02B, rev 01
P-ENGINE 1: type E02B, rev 01
==========================================================================
UNIT 1: SL 2: ICX6610-QSFP 10-port 160G Module
==========================================================================
UNIT 1: SL 3: ICX6610-8-port Dual Mode(SFP/SFP+) Module
==========================================================================
UNIT 2: SL 1: ICX6610-48 48-port Management Module
Serial #: BXN3849K002
License: BASE_SOFT_PACKAGE (LID: dzpINJOmFFH)
P-ENGINE 0: type E023, rev 01
P-ENGINE 1: type E023, rev 01
==========================================================================
UNIT 2: SL 2: ICX6610-QSFP 10-port 160G Module
==========================================================================
UNIT 2: SL 3: ICX6610-8-port Dual Mode(SFP/SFP+) Module
==========================================================================
800 MHz Power PC processor 8544E (version 0021/0023) 400 MHz bus
65536 KB flash memory
512 MB DRAM
STACKID 1 system uptime is 37 days 22 hours 10 minutes 44 seconds
STACKID 2 system uptime is 37 days 22 hours 10 minutes 42 seconds
The system started at 00:11:37 GMT+00 Wed May 24 2017
The system : started=cold start
My stack unit ID = 1, bootup role = active
