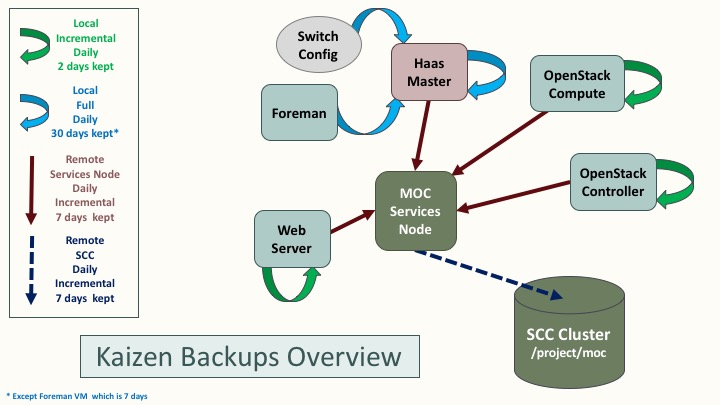

Kaizen Backups Overview

../../_images/Kaizen_Backups_Diagram.jpg

Backups of the MOC Kaizen cluster are handled by a set of lightweight bash scripts which use rsync.

The advantage of using rsync and bash is portability - it is easy to include a wide variety of nodes and instances using the same set of base scripts.

Components

  • OpenStack Nodes :
    • Puppet handles installation of the backup scripts on OpenStack controller and compute nodes
    • Class ‘backups’ is defined in puppet:///modules/quickstack/manifests/backups.pp
    • The class is declared in controller_common.pp and compute_common.pp
    • The class declaration is essentially the same for both controller and compute, but a different script is installed. The different scripts are stored in puppet://modules/quickstack/files/ and are customized for the specific type of node.
    • Puppet configures a backup user with appropriate authorized_keys file and limited sudo permissions.
    • Puppet also installs the local backup script and the root cronjob that runs it.
  • Non-OpenStack Nodes :
    • There is generic version of the local backup script which can be configured for any node or VM, even those not managed by Puppet.
    • Currently, the script, user, cronjob, authorized_keys, etc must be installed manually for non-Puppet nodes.
    • The MOC website is currently backed up using this generic script.
  • Haas Master, Foreman, and Switches :
    • The haas master database is backed up daily.
    • Foreman is backed up by cloning the VM.
    • A static backup exists of the switch config.
    • Currently, none of the backups taking place on the haas master are incremental; there are plans to improve this.

Backup Collection

  • The collection script and cronjob are installed manually on any machine designated as a collection node.
  • Currently, backups are collected on the Services Node.
  • The last 8 days of backups are stored. This can be changed by editing the following line in collect_backups.sh: DELETE_DAY="$(date -d '8 days ago' -I)"

“Offsite” Collection

  • {WORK IN PROGRESS} An additional incremental backup is made from the Services Node to BU’s SCC cluster.
  • Note that while this is a backup to a completely separate system, controlled by a different university, it technically isn’t an offsite backup since the SCC cluster is also located at MGHPCC (although in a different pod).

How the scripts work

  • Local backup scripts are run once per day, and create a daily incremental backup stored in /backups/YYYY-MM-DD. This directory follows the same naming convention on every node.
  • The oldest backup is deleted. To change how many backups are kept locally, configure this line within the relevant script: DELETE_DATE="$(date -d '2 days ago' -I)"
  • The collection nodes run a collection script, also once per day, NOTE: It is important that the collection script run AFTER that day’s backups.
  • The cronjob is configured to log to a file, but also email any stderr output to kaizen@lists.massopen.cloud, so that we will be alerted if any backup fails.

To-Do List / Suggestions for improvement

  • General
    • Investigate whether rdiff would offer more efficient backups
    • create a helper script to handle backup script installation on non-puppetized nodes
    • Review where encryption is needed and add/remove as necessary
      • Further parameterize the backup scripts:
      • number of days worth of backups
      • verbose logging / dry run (rsync args)
    • Investigate Freezer to see if this is something we can use in the future if/when they support Ceph
  • Collection nodes
    • Puppetize installation of the collection scripts on the Openstack services nodes
    • automate updating known_hosts if a new node is added
    • mechanism to communicate the current hypervisor list to collection nodes - this would eliminate the need to add new physical nodes to the collection script manually
    • Design a way to automate adding a new collection node’s public key when is not configured by puppet.
  • Haas Master + associated :
    • Standardize backups directory structure on haas-master to conform to the overall scheme.
    • Improve backups of the switch config
    • Use rsync and incremental backups for the Foreman VM (either instead of or in addition to the VM clones)

Updates

September 15, 2017 : Laura Kamfonik via email (9/12)

Backups puppet module

And the scripts it installs are in this directory: compute_backup.sh and controller_backup.sh

The collection script that runs on node 39 is here

Backups are first copied to the /backups directory on node 39, and then from there they are pulled to SCC.
